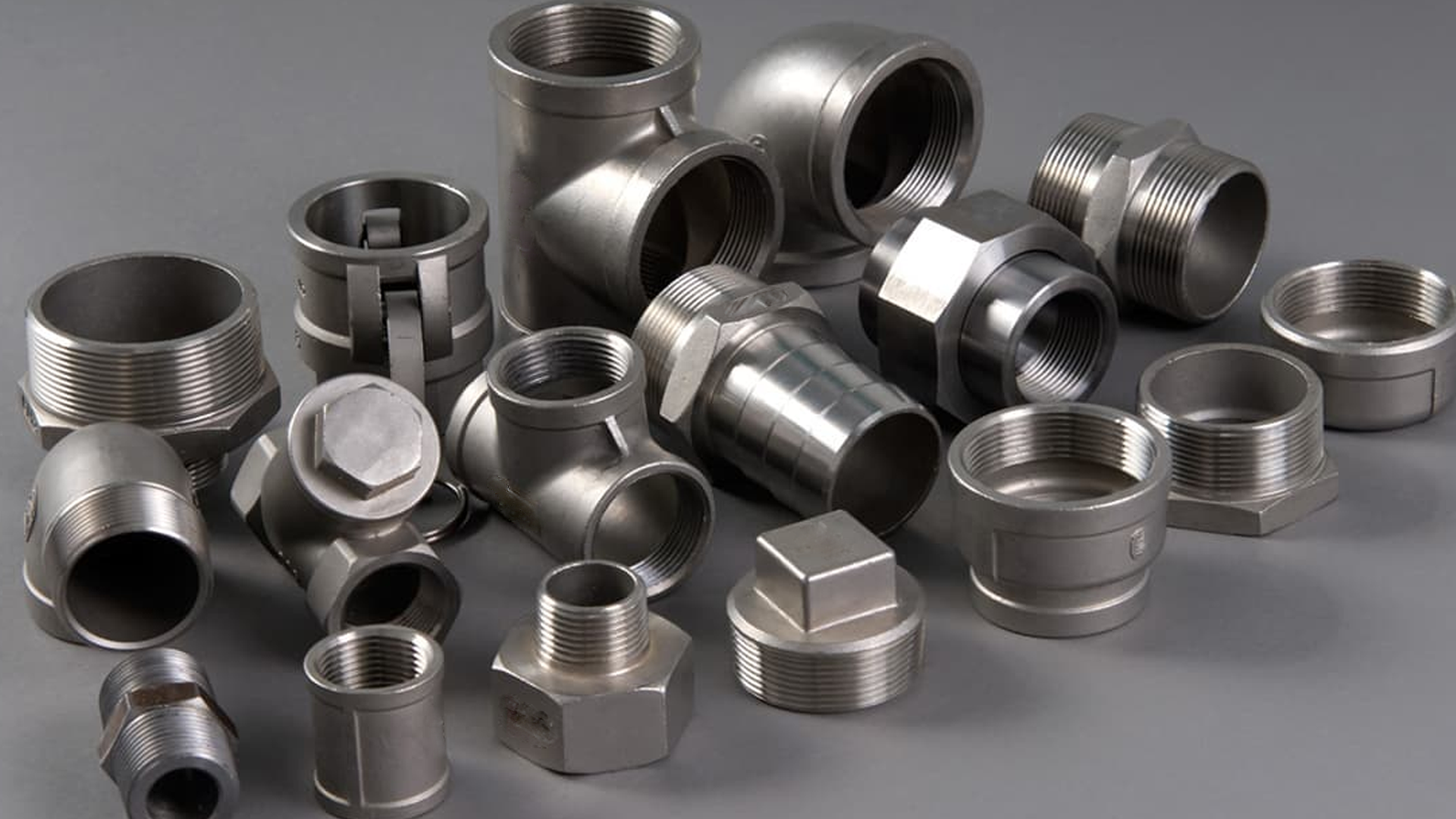

Premium Stainless Steel Forged Fittings for High-Pressure Piping Applications
Stainless Steel Forged Fittings are widely used in high-pressure piping systems, oil & gas, petrochemical, power generation, and industrial process lines due to their superior strength, durability, and resistance to corrosion. Manufactured from high-quality forged stainless steel, these fittings provide excellent mechanical properties and leak-proof connections. When selecting forged fittings, material grade, pressure class, size, and end connection type are critical factors for reliable performance in demanding environments.
- Available in grades SS 304, 304L, 316, 316L, 321, 310S, 347, 904L
- Sizes from ½” to 4” (Custom sizes available)
- Pressure classes: 2000#, 3000#, 6000#, 9000#
- Types: Elbow, Tee, Coupling, Union, Plug, Bushing
- End connections: Socket Weld (SW), Threaded (NPT/BSP)
- Manufactured as per ASTM A182 / ASME B16.11 standards
- Suitable for oil & gas, petrochemical, power plants, and marine applications
- Supplied with Mill Test Certificate (EN 10204 3.1 / 3.2)
Specification Table of Stainless Steel Forged Fittings
| Specification | Details |
|---|---|
| Material Grade | SS 304, 304L, 316, 316L, 321, 310S, 347, 904L |
| Standards | ASTM A182, ASME B16.11 |
| Size Range | ½” to 4” (Custom sizes available) |
| Pressure Class | 2000#, 3000#, 6000#, 9000# |
| Types | Elbow (45°/90°), Tee, Coupling (Full/Half), Union, Plug, Bushing, Cross |
| End Connection | Socket Weld (SW), Threaded (NPT/BSP) |
| Manufacturing Process | Closed Die Forged / Machined |
| Certification | Mill Test Certificate (MTC) as per EN 10204 3.1 / 3.2 |
| Applications | Oil & Gas, Petrochemical Plants, Power Generation, Marine, Chemical Processing |

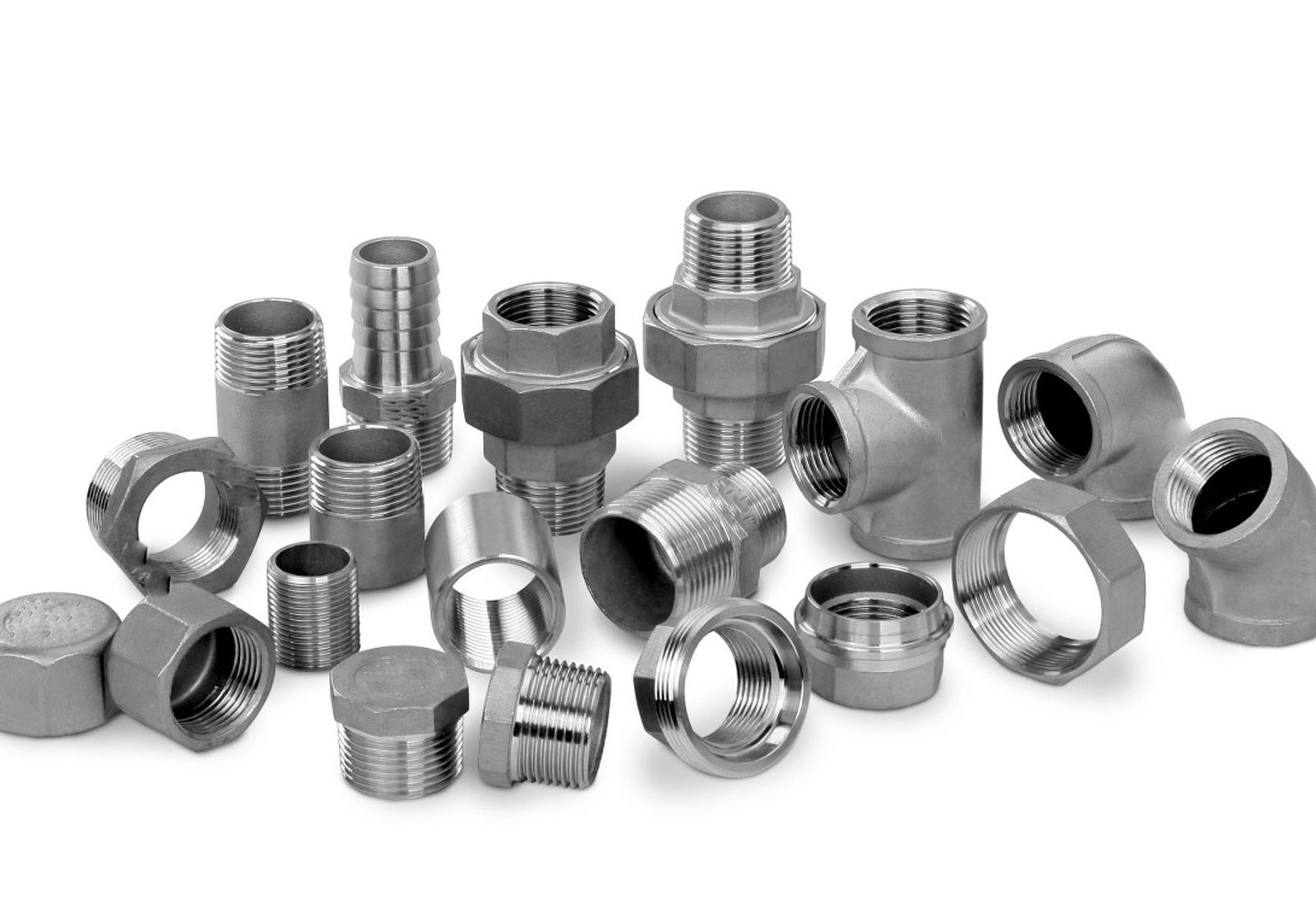

Forged Fittings
Stainless Steel Forged Fittings are precision-engineered for strong, leak-proof connections in piping systems. They are ideal for high-pressure and high-temperature applications in industries such as oil & gas, petrochemicals, and power plants.
